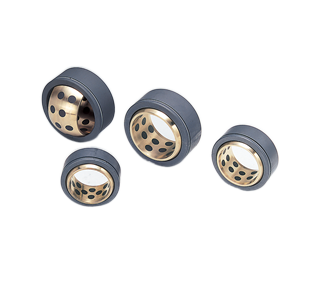

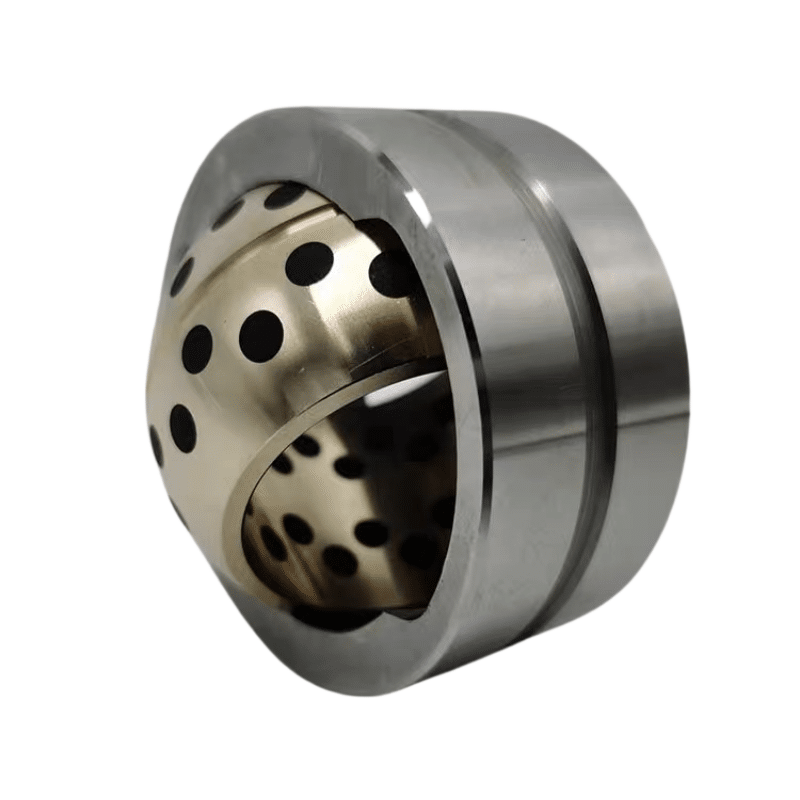

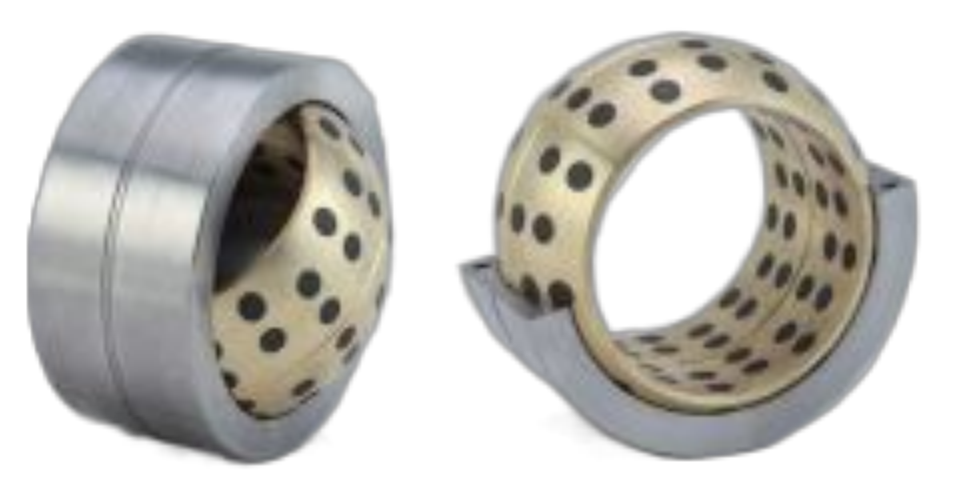

Support a large range of oilles Spherical bearings – maintenance-free self-lubricating at MINGXU bearing.
Applications
Cylinders for mining trucks
Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls, and ripper blades for bulldozers
Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
Stick and bucket cylinders for hydraulic excavators
Additional applications for space shuttles, heavy movable structures, and miscellaneous vehicles
The bronze -based solid inlaid self -lubricating arthritis bearing combines the abrasion resistance of the copper alloy (ZCUZN24AI6) and the self -lubricating performance of the solid lubricant, so that it does not require refueling maintenance during use.

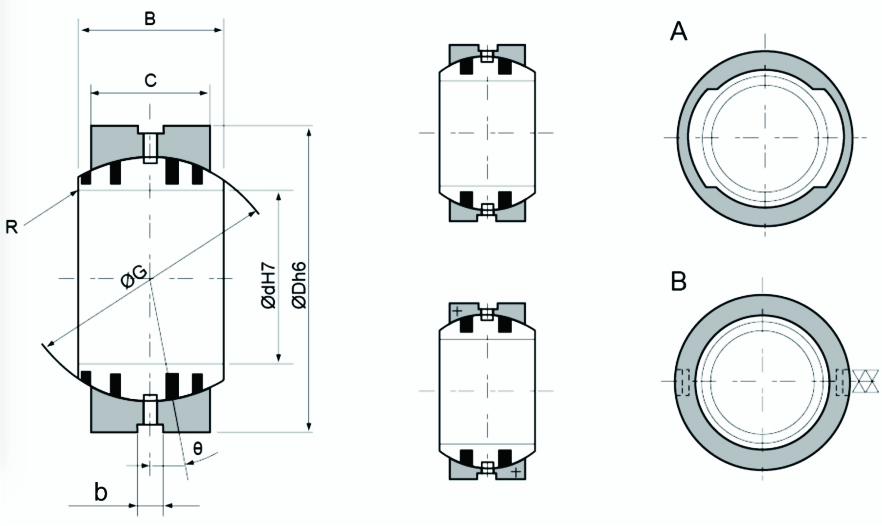

The structure of the joint bearing is simpler than the rolling bearings. It is mainly composed of an inner ring with an outer spherical and an outer ring with inner sphere. Jelly bearing is generally used for lower swing movements (ie angle motion). Because the surface of the sliding surface is the spherical shape, it can also be tilted (that is, the heart adjustment movement) within a certain angle range. When the support of the axis and the shaft shell hole is large, it can still work normally.
